PRODUCTS Bottle Washing,Filling&Capping >> Automatic 5L Bottlf filling And Capping Machine
DFC-5L

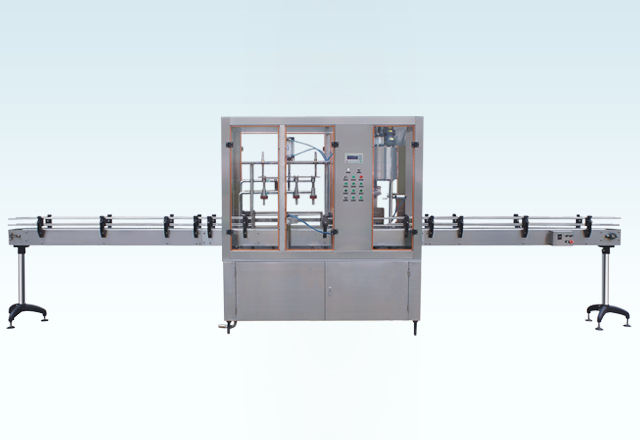

Automatic 5L Bottlf filling And Capping Machine


¡ñ DFC-5 L Filling and Capping Machine is a 2-in-1 piece of equipment which special design for big volume bottle from 3Litre upto 7Litre.
¡ñ OMRON PLC with easy to use switch, and equipped with an text screen to access the control panel system.
¡ñ A shut-off nozzle together with balance return serve to prevent bubble formation during the filling process.
¡ñ All parts in contact with filling material is made of stainless steel 304L to meet cGMP standard.
¡ñ Feature a adjustable torque capping head to adapt to different bottle covered elastic.
¡ñ No bottle-no-filling and no-bottle no-capping mechanisms included with the system.

Technical Data:
Model
DFC-5 L
Capacity
800-1500 BPH
Filling Position
4
Volume of bottle
3-5L
Capping Head
1
Power
0.75Kw  20/380V
Air source supply
600L/min, 8Bar
