PRODUCTS Bottle Washing,Filling&Capping >> Automatic Bottle Washing, Filling And Capping Line
BF2000A

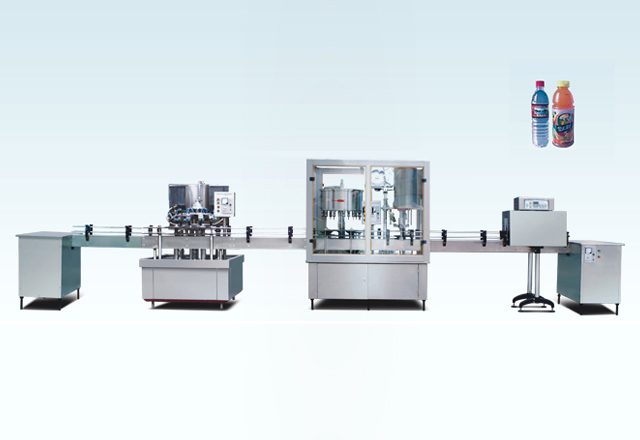

Automatic Bottle Washing, Filling And Capping Line


The line is composed of bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on. Machine adopt very simple electric controller and very easy adjustment,suit for various types of bottles, It is the ideal production line for beverage makers.

Technical Data:
Name&Model
ZPC-12 Washer
GC-12Filler
ZPC-12 Washer
Capacity
2000-2500BPH
1500-3000BPH
2000BPH
Working Position
12
12
1
Volume of bottle
200-1500ML
200-1500ML
350-1500ML
Power
0.75Kw 220/380V
0.75Kw 220/380V
0.55Kw 220V
Dimension
135x135x190CM
175x115x200CM
175x115x200CM
Weight
800Kgs
900Kgs
900Kgs

Name&Model
BSL1535 Labeler
Conveyor
Capacity
1500-2000BPH
100-2500BPH
Working Position


Volume of bottle
200-1500ML

Power
3.5KW 220/380V
0.75KW 220/380V
Dimension
105x60x80CM
100x72x220CM
Weight
80Kgs
200Kgs
